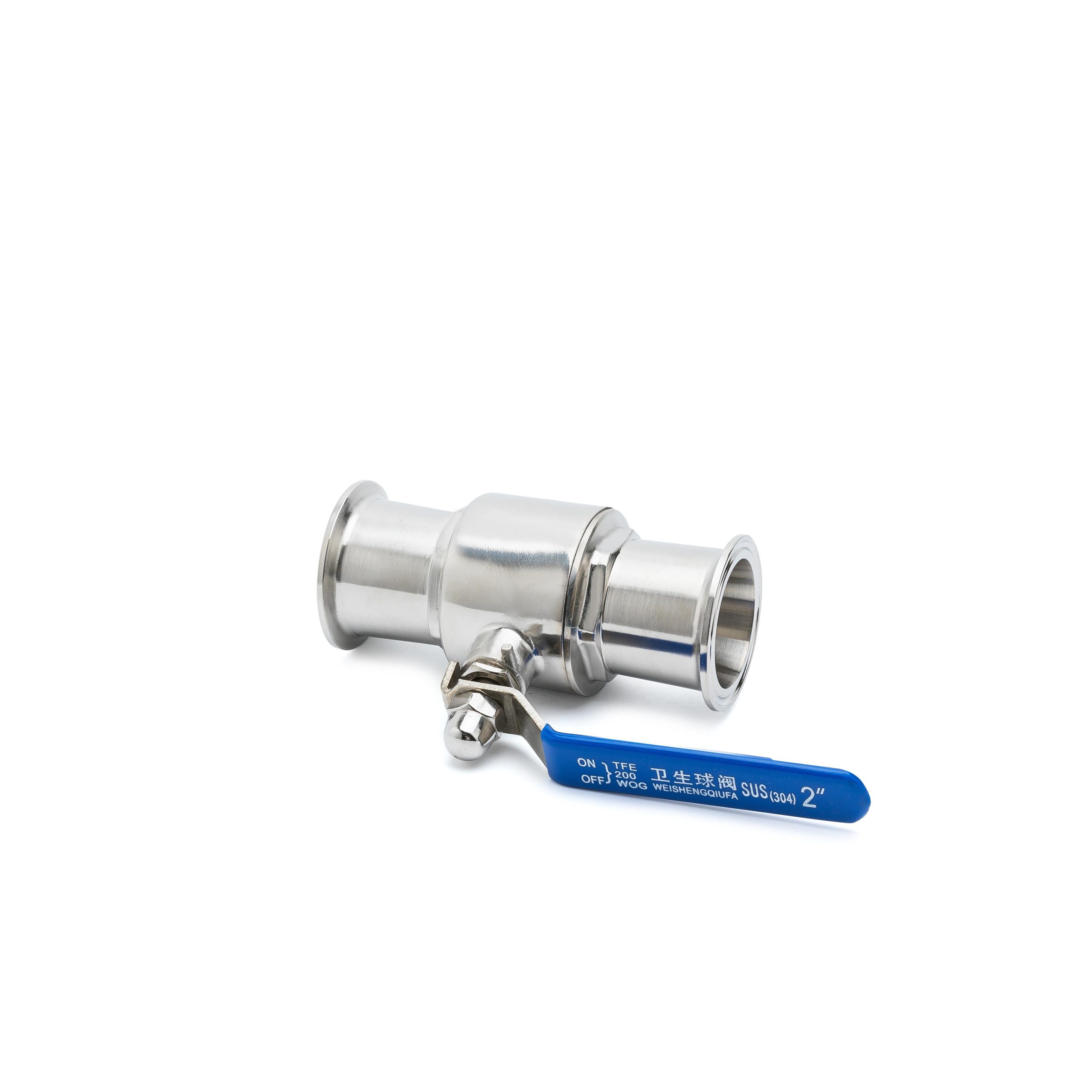

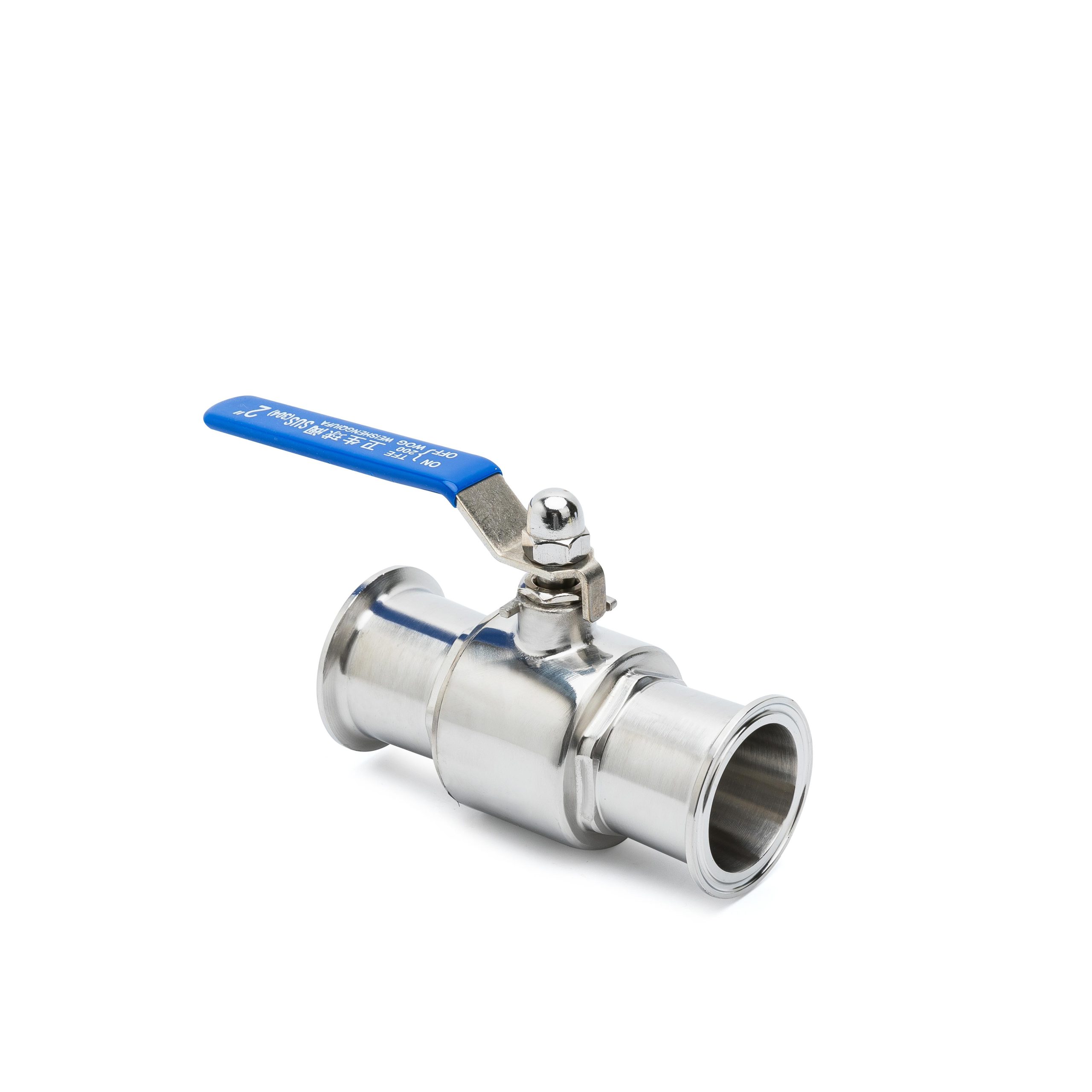

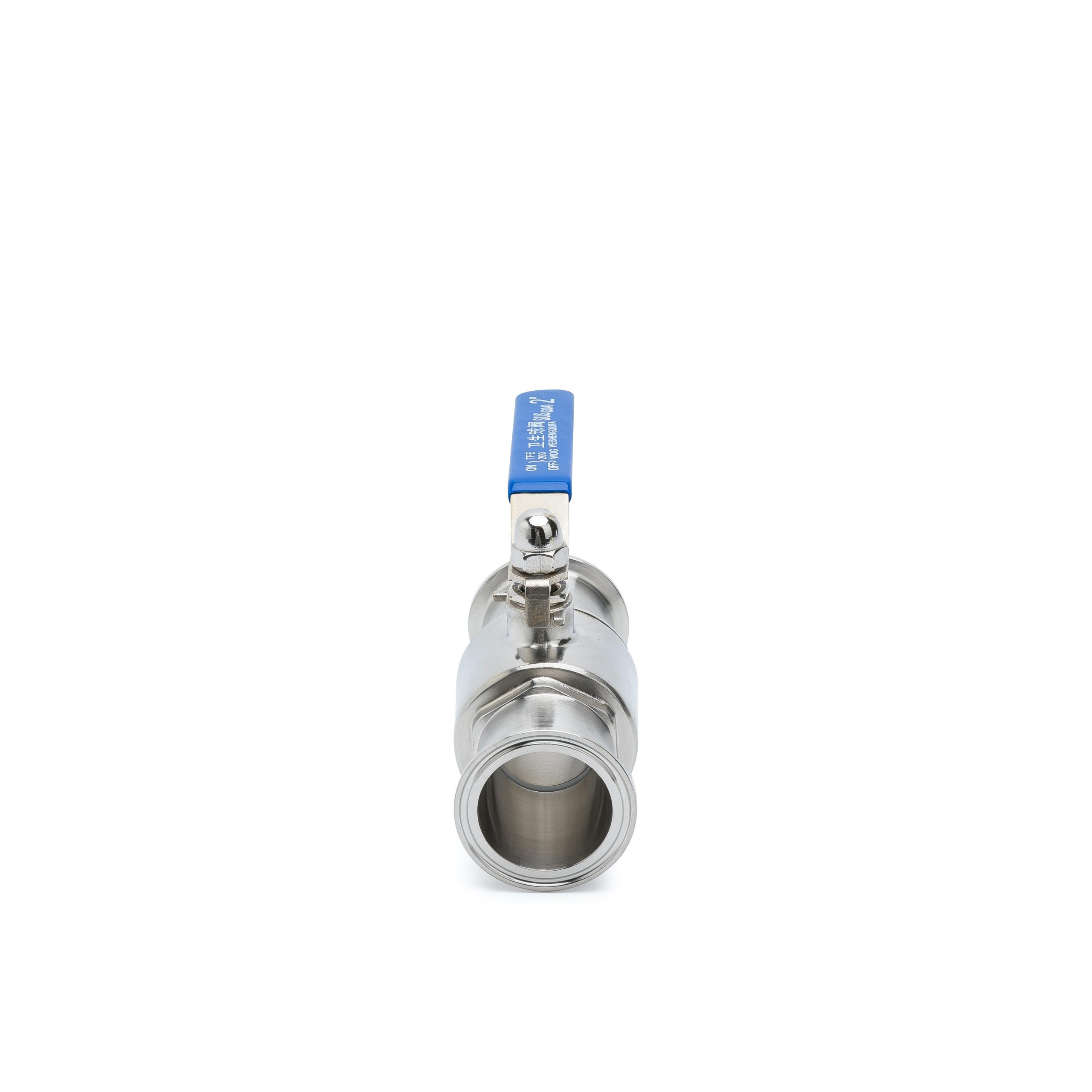

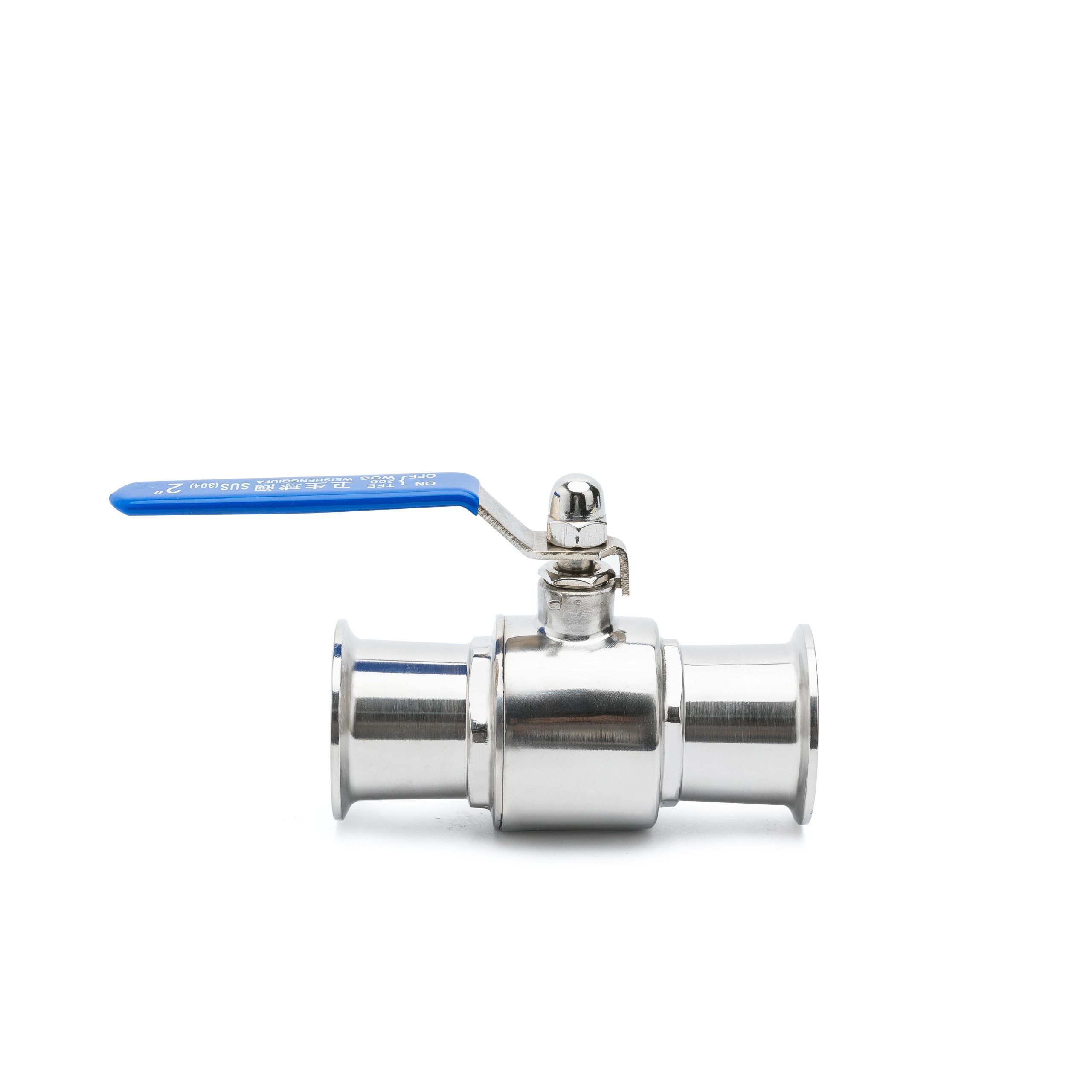

Sanitary Quick-Install 2-Piece Ball Valve
A sanitary-grade clamp-end straight-through ball valve for on/off flow control in ultra-clean systems. Features 304/316L stainless steel body with full bore design and hygienic finish.
Application Scenarios
• Liquid Cooling: On/off control in CDU cooling loops
• Pharmaceutical: Sanitary flow control in WFI systems
• Food & Beverage: Batch processing in dairy and breweries.
Technical Specifications
| Product Material | 304/316L |
| Product Size/Model | DN15-DN125 |
| Connection Type | Quick-Install / Tri-Clamp |
| Manufacturing Process | CNC Finishing / Polishing |
| Operating Conditions | Atmospheric |
| Applicable Media | Water, Air, Oil, Mild Corrosive Media, etc. |
FAQs
Why 2-piece design?
Lower cost than 3-piece while still allowing basic maintenance.
Full port or reduced port?
Full port (full bore) for minimal pressure drop; reduced port for compact size and lower cost.
What pressure rating?
Up to 16 bar (232 psi), suitable for most liquid cooling applications.
