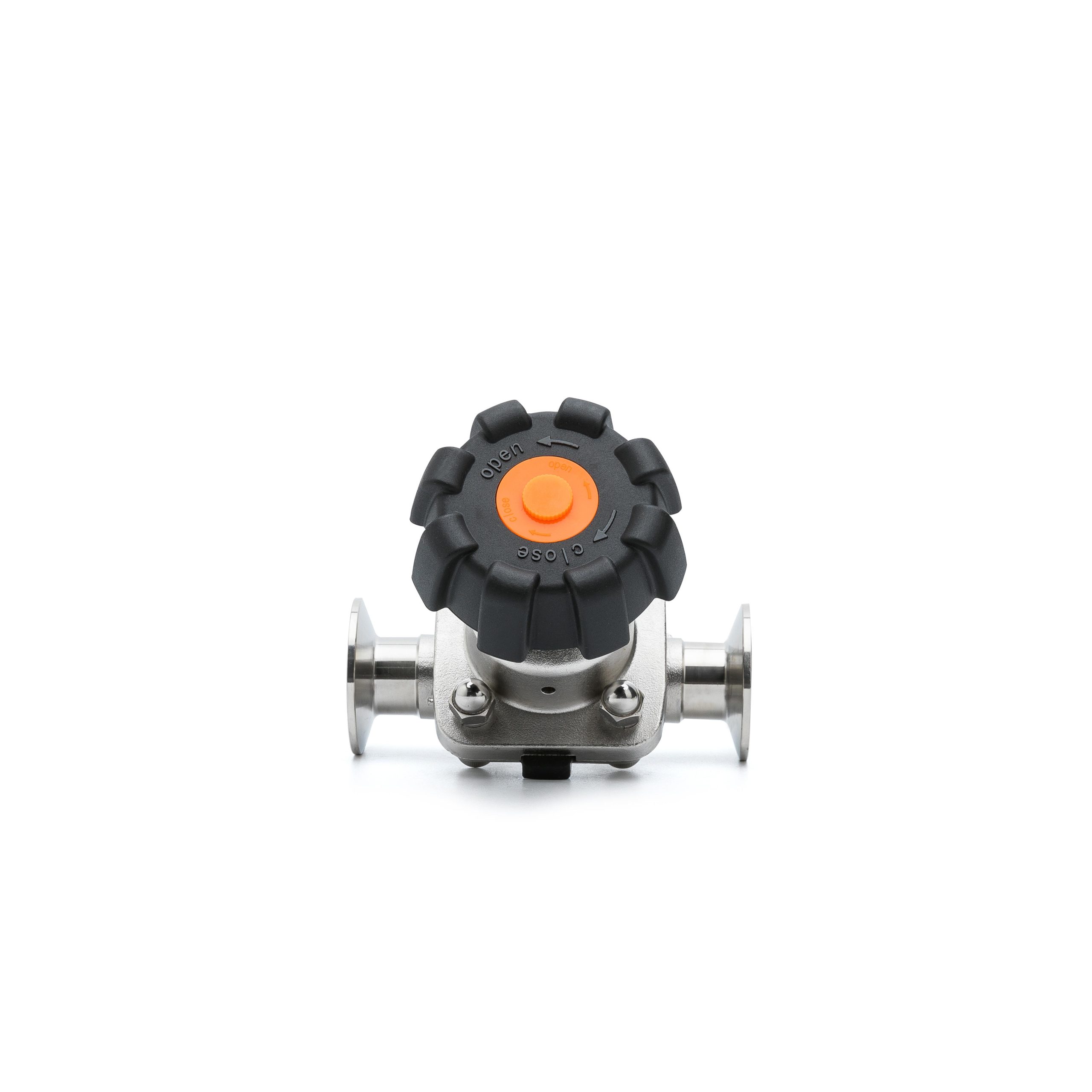

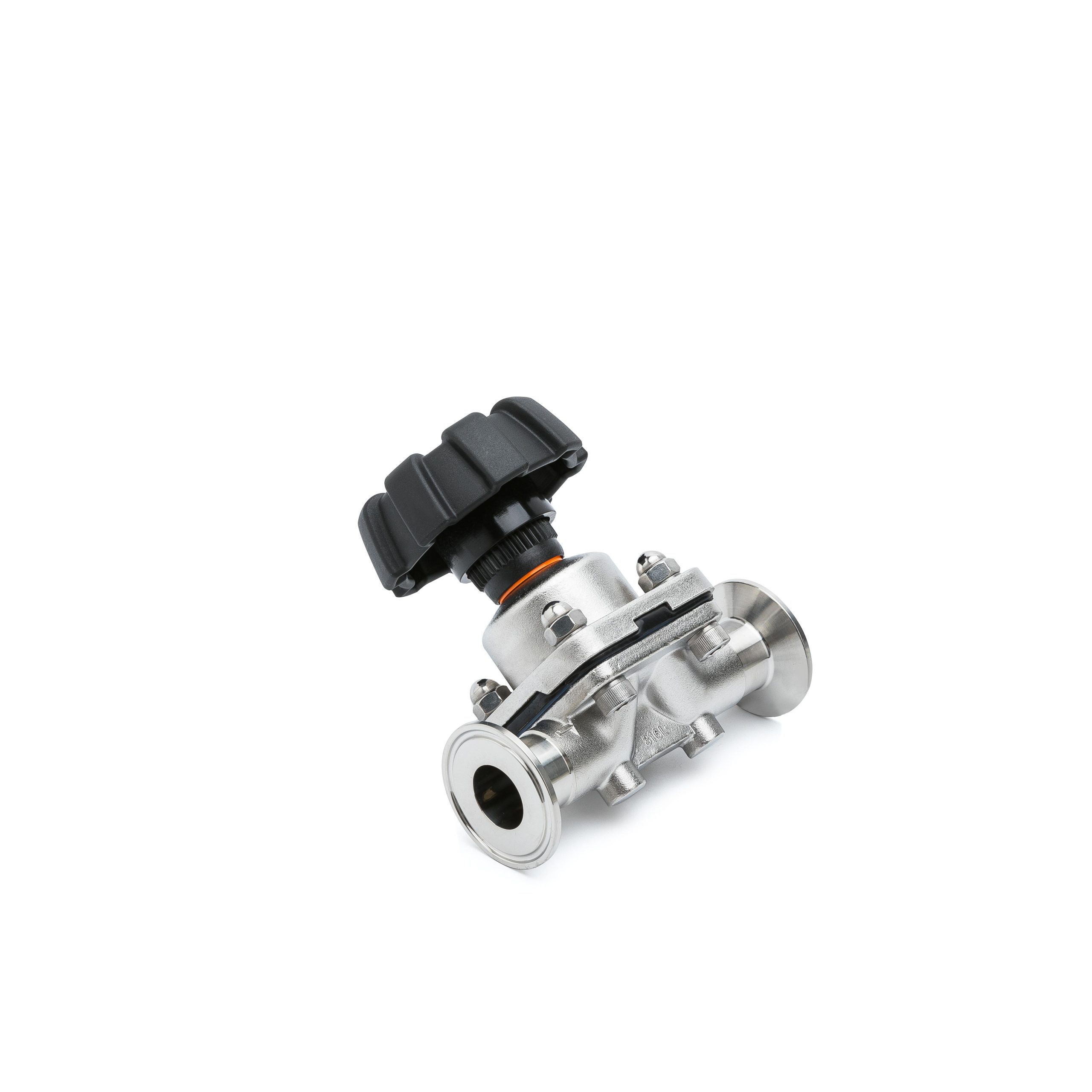

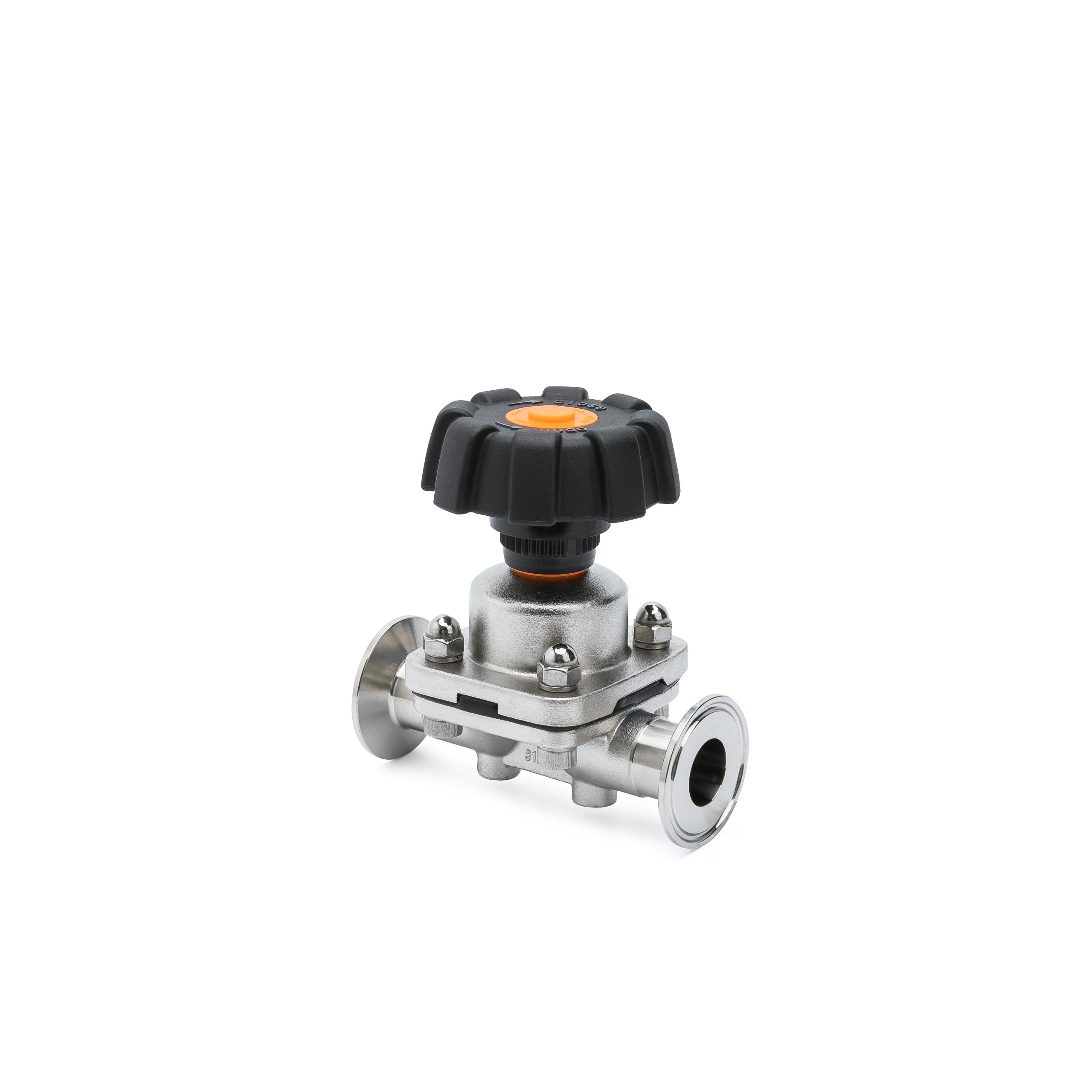

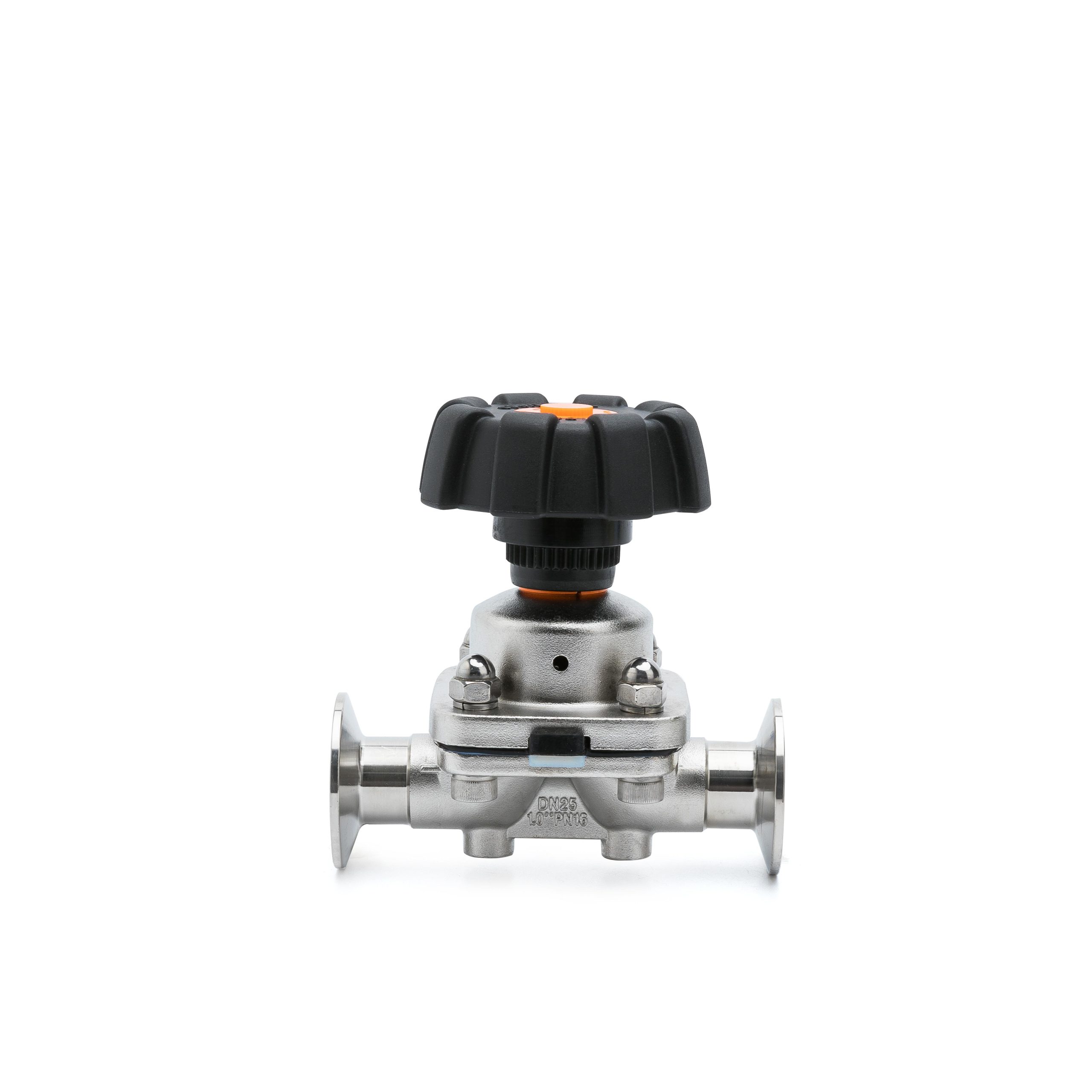

Sanitary Manual Diaphragm Valve
A manually operated sanitary-grade diaphragm valve for sterile flow control. Features 316L stainless steel body with handwheel operation and crevice-free hygienic design.
Application Scenarios
• Liquid Cooling: Manual control in small CDU systems
• Pharmaceutical: Laboratory and pilot plant systems
• Food & Beverage: Manual control applications in breweries.
Technical Specifications
| Product Material | 304/316L |
| Product Size/Model | DN15-DN80 |
| Connection Type | Tri-Clamp |
| Manufacturing Process | CNC Finishing |
| Operating Conditions | Atmospheric |
| Applicable Media | Water, Air, Oil, Mild Corrosive Media, etc. |
FAQs
Why manual diaphragm valve?
Simple, reliable flow control for smaller systems or points that don’t require automation.
Is it fully drainable?
Yes, weir design and smooth internal finish ensure complete drainage, no product hold-up.
What diaphragm materials?
EPDM, PTFE, or EPDM+PTFE laminate depending on media compatibility.
